Turner Uni-Drive
Industrial Gearbox Catalog
Below is a list of the current industrial gearboxes we have available. We manufacture many variations of these units to meet horsepower, torque, and ratio requirements. Engineering assistance is available when designing and integrating our gearboxes into your application.

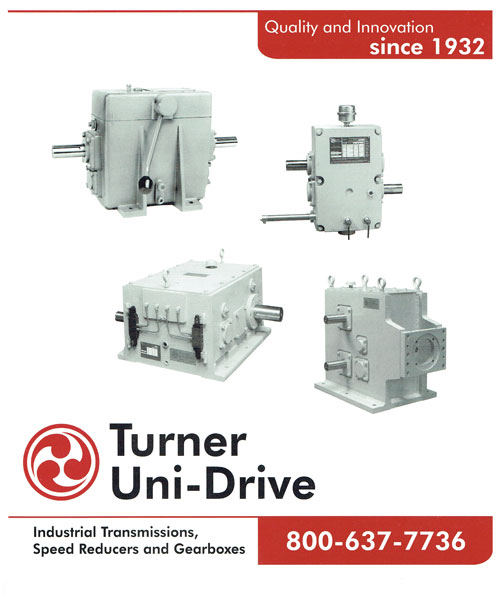

Gearbox, Transmission and Speed Reducer Catalog
Our industrial gearbox catalog shows units for which we stock components including industrial gearboxes, speed reducers, and industrial transmissions based on our customer's needs. We manufacture many variations of these units to meet horsepower, torque and ratio requirements.
Engineering assistance is available and frequently called upon when designing and integrating Turner Uni-Drive industrial gearboxes or transmissions into a new or existing application.
Turn to Turner for:
- Positive speed selection with thousands of ratio combinations
- Reversing ratios in all models
- Carburized and ground gearing
- Versatility in shaft location
- Lower cost per output horsepower
- Helical gearing and gearboxes
- Manual, pneumatic and electric shifting
- 2, 3, 4, 6 and 9 speeds all in one of our industrial gearboxes
- Time tested and industry proven design and manufacturing methods
Gearbox Listing
25 models
Built to Last
Specifications
Every Turner Uni-Drive gearbox is built with premium materials and precision engineering for demanding industrial environments.

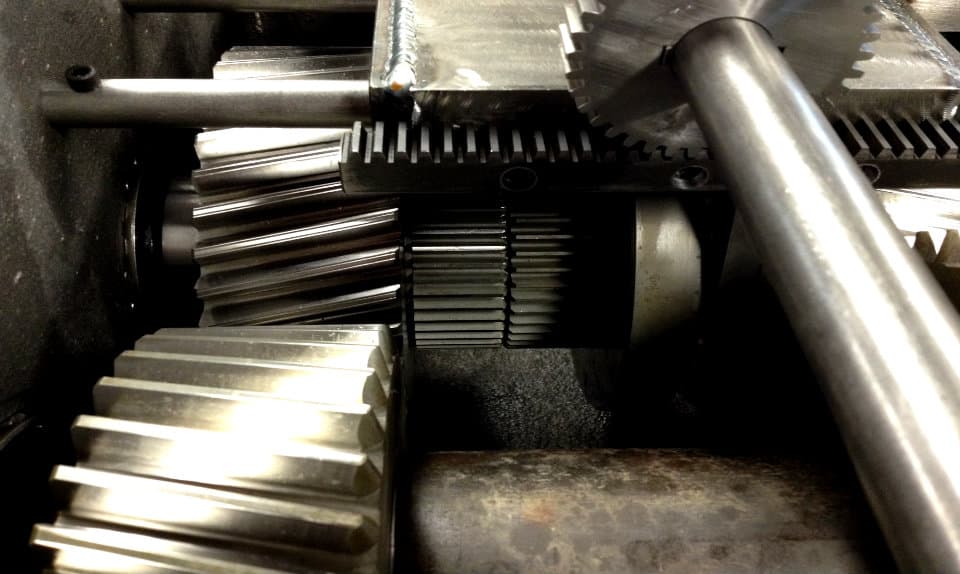

Industrial Gearing
All gearing is case hardened for optimum wear resistance, with pitches selected for maximum strength and finish hobbed or ground for accuracy and quiet running.
- ▶Spur-type gearing is standard, with helical gearing available as an option in applications approved by home office
- ▶All ratios are in stock for quick handling and prompt delivery of emergency replacement orders
- ▶Ground gearing is standard on models sized 10M and above and available upon request for smaller models
Housing
Heavy-duty cast iron or fabricated for maximum rigidity and proper alignment of shafts, gears and bearings.
- •Covers not subjected to transmitted loads
- •Corrosion-resistant for outdoor installation
- •Large surface areas radiate heat effectively
Shafting
Through-hardened alloy steel, splined for maximum torque transmittal through gearing.
- •Keyways conform to ASA standards
Shifting
Rugged internal shifter forks of cast iron or steel held in position with spring-loaded detents.
- •Positive locking device available for severe vibration
Bearings
Heavy Duty tapered roller bearings used throughout.
- •Adjustments made easily without removing case cover
Seals
Spring loaded lip-type cartridge seals at all shaft extensions, including shifter arms.
- •Maximum protection against oil leakage
- •Magnetic pipe plugs remove metallic particles
Lubrication
Splash lubricated gears and bearings for normal mounting.
- •Sight gauge for easy oil level checks
- •Efficient air breathers equalize pressures
- •Optional pump-driven circulating oil system with heat exchanger
Global Reach
Gearbox Applications
Turner Uni-Drive industrial gearboxes and multi-speed transmissions are used throughout the world for a wide variety of demanding applications.
Food & Beverage Processing
From food packaging in Pennsylvania to beverage processing lines worldwide, our gearboxes deliver reliable torque multiplication and speed control.
Petroleum & Steel Processing
Applications range from wire drawing in New Zealand and tube processing in Oman to petroleum processing in Wyoming.
Why Mechanical Gearboxes?
Turner Uni-Drive provides torque multiplication and speed control making our industrial gearboxes a positive investment in most any industry. Torque multiplication through a mechanical gearbox will typically generate long term energy savings and lower first costs.
Please contact us directly if you have any questions about incorporating a Turner Uni-Drive gearbox into your application.
Industries We Serve
- Steel and tube processing
- Food processing
- Wire drawing
- Plastic extrusion
- Aggregate and construction
- Petroleum processing
- Test stands
- Waste water treatment
Options & Add-Ons
Industrial Transmission and Gearbox Accessories
At Turner Uni-Drive we take pride in flexibility. Our aim is to exceed your expectations. We will accommodate your requests for options and accessories — from the highly technical to the most obscure.
Standard Rigid Mounting Bases
Rigid mounting bases are used to mount under the gearbox and raise it to an efficient operating level. This option is typically selected to accommodate pulley size and motor alignment.
Custom Mounting & Machine Bases
Turner Uni-Drive will custom manufacture mounting plates and machine bases to meet your requirements. Typically selected for retrofit applications to provide ease of installation or to incorporate the motor, transmission and other components on a single base.
Hinged Motor Plates
Hinged motor plates provide a mounting surface for the motor on top of the gearbox. They are adjustable to allow for belt tensioning and to reduce installation space requirements for the motor and gearbox.
Helical Gearing
Helical gearing is typically selected for higher horsepower applications with a higher load-carrying capacity and quieter operation than standard spur gearing. Combined with gear grinding capabilities, helical and ground gears produce an exceptionally quiet-running gearbox.
Pneumatic Shifting
Pneumatic shifting is accomplished via internally mounted air cylinders and external solenoids provided in a variety of voltages. Shifting is typically accomplished at a remote location or operator's control panel. Shop air of 35 to 45 psi is required.
Proximity Sensors
Proximity sensors are mounted in the housing to detect the location of shifting components. This option is selected with or without pneumatic shifting to provide positive assurance at the control panel of a complete shift.
Lubrication Systems & Heat Exchangers
Shaft-driven or independent lubrication pumps and heat exchangers are available for unique applications. Lubrication systems may be necessary for unique mounting systems, for example, to lubricate vertical units. Heat exchangers are used to lower the overall operating temperature of a gearbox. This is only a partial listing of options available — we will gladly accommodate other requests.
Technical Resources
Gearbox Instructions & MSDS
Download operation manuals, shaft location diagrams, and material safety data sheets for Turner Uni-Drive gearboxes.
Explanation of Gear Case Data Sheet
Documentation · PDF
Operation and Maintenance — TUD
Documentation · PDF
Shaft Locations: 2M, 3M, 5M, 6M, 10M, 11M
Shaft Diagrams · PDF
Shaft Location: E3
Shaft Diagrams · PDF
Shaft Location: 20M, 50M, 55M, 60M, 65M
Shaft Diagrams · PDF
Mobilgear 629 MSDS
MSDS · PDF
Mobilgear 630 MSDS
MSDS · PDF
Need a Custom Solution?
Don't see what you need in our industrial gearbox catalog? Turner Uni-Drive specializes in custom-engineered gearboxes built to your exact specifications.
